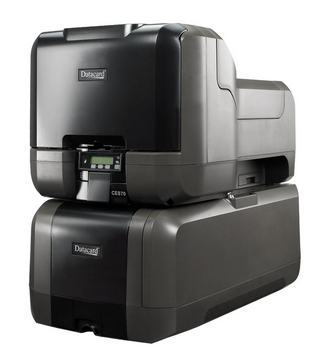

CE870 Card Printer

CE870 Card Printer Product Description

Issue embossed credit and debit cards anywhere, anytime with the Datacard® CE870™ instant issuance system. The powerful CE870 system offers the flexibility to issue a variety of card types in a wide range of formats — with special characters and multiple languages. Create card programs that align perfectly with emerging consumer demands for customization, personalization, flexibility, on-demand service and integration with self-service kiosk applications. A variety of physical and logical security features protect your program and ensure compliance with industry standards.

Issue high-quality, embossed financial cards on-demand
Minimize card pre-printing, inventory and mailing costs
Improve cardholder satisfaction and differentiate your brand
Improve activation rates, card usage and other revenue-driving metrics with instant issuance
Configure the modular system to meet your exact requirements
Connect your business to card issuance opportunities in the fast-rising self-service economy with hardware that adapts to a wide range of kiosk environments

Technical Specification

Embossing/Indent
75-character embossing/indenting wheel, financial format per ID-1
ISO 7811-3
Front, rear or both sides of the card
Speed
60 seconds to encode mag stripe, indent, emboss and top the
card
64 seconds to print monochrome graphics, encode mag stripe, indent, emboss and top the card
78 seconds to print color graphics, encode mag stripe, indent, emboss and top the card
Encoding
Magnetic stripe encoding
ISO 7811, three track high- and low-coercivity
Card capacity
Automatic card feed with 100-card input hopper based on 0.030
in. card thickness
Output hopper, 10-card capacity
Reject bin, up to 5-card capacity
Exception card slot
Security features
Software activated lock to secure card stock, supplies and reject card hopper
SSL/TLS encryption, supports 3DES and AES-128
Bolt-down ready
KL-style table lock compatible (lock sold separately)
Concealed output hopper
Password protected cabinet
Non-resettable card counter for auditing
Display
2-line LCD display
User interface languages available: English, Spanish, German, Italian, Japanese
Physical dimensions
Top module (single hopper system): 8.8 in. W x 21.2 in. D x 8.8 in. H
Top module (six-compartment multi-hopper system): 16.5 in. W x 27.5 in. D x 14.5 in. H
Bottom module (embosser): 15 in. W x 27.5 in. D x 10.5 in. H
Weight
Top module (single input hopper, encoding, printing): 12 lbs.
Top module (six-compartment multi-hopper, encoding, printing): 33 lbs.
Bottom module (indenting, embossing, topping, card output): 40 lbs.
Connectivity
Ethernet and USB
Warranty
12-month system warranty
